CAD Design for 3D Printing: How to Create Printable Parametric Parts

Learn how to use text to CAD for 3D printing: plan dimensions, generate parametric models, review printability, and export STL, STEP, IGES, or BREP files.

CAD design for 3D printing means creating dimensioned, editable models that can be exported as printable files such as STL. It is the best fit for mechanical and functional parts where size, wall thickness, holes, tolerances, and repeatable edits matter.

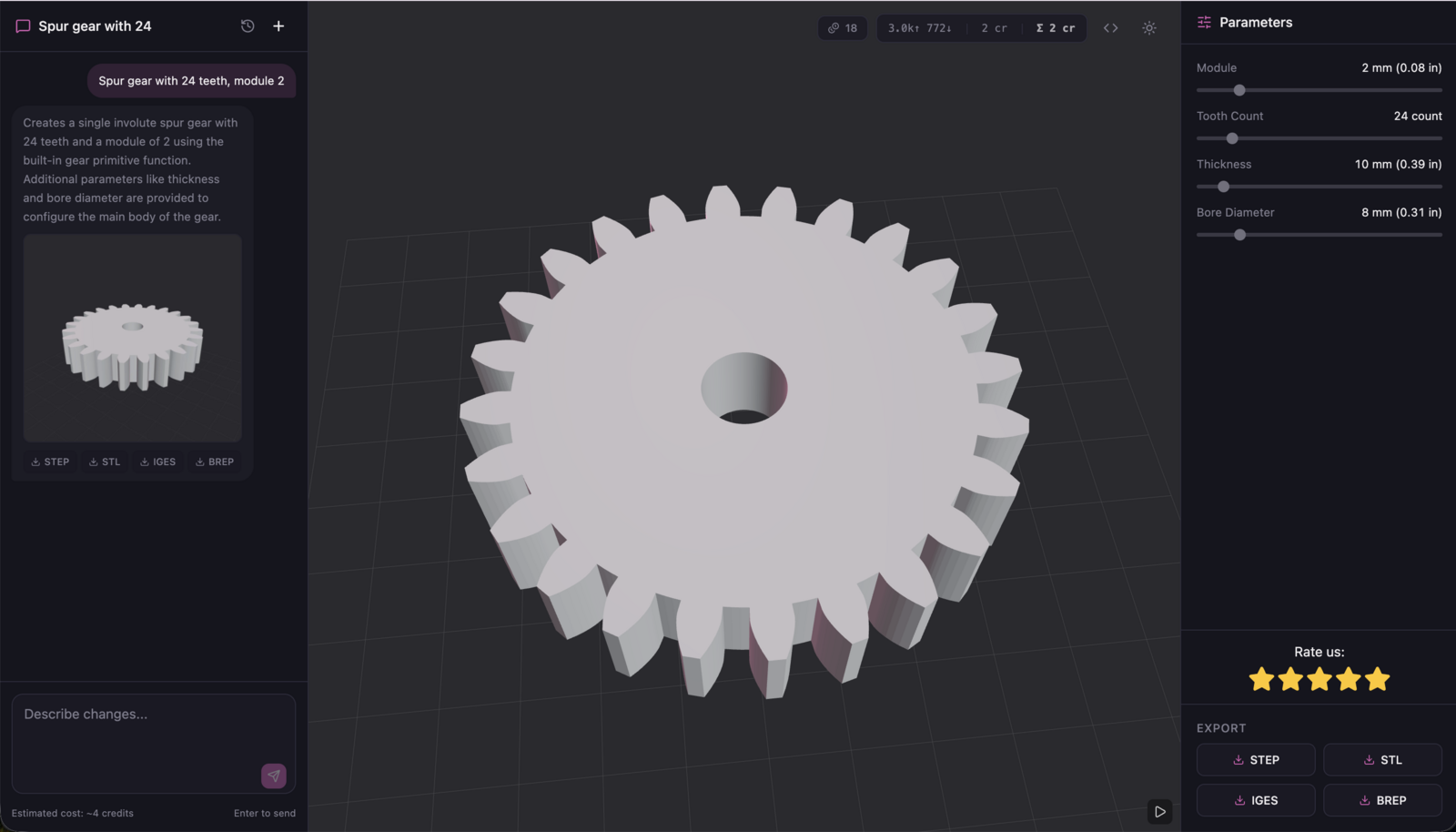

Compared with mesh modeling, parametric CAD is easier to revise after a test print. You can change dimensions, regenerate the part, and export STL for slicing or STEP, IGES, and BREP for further CAD editing.

CAD vs mesh vs point cloud

CAD solids, triangle meshes, and point clouds can all represent 3D shape, but they are useful for different jobs. For 3D printing functional parts, the difference matters because you often need editable dimensions.

CAD solid. Use CAD when configurability and precision are key. Features such as holes, walls, fillets, threads, and cutouts stay editable.

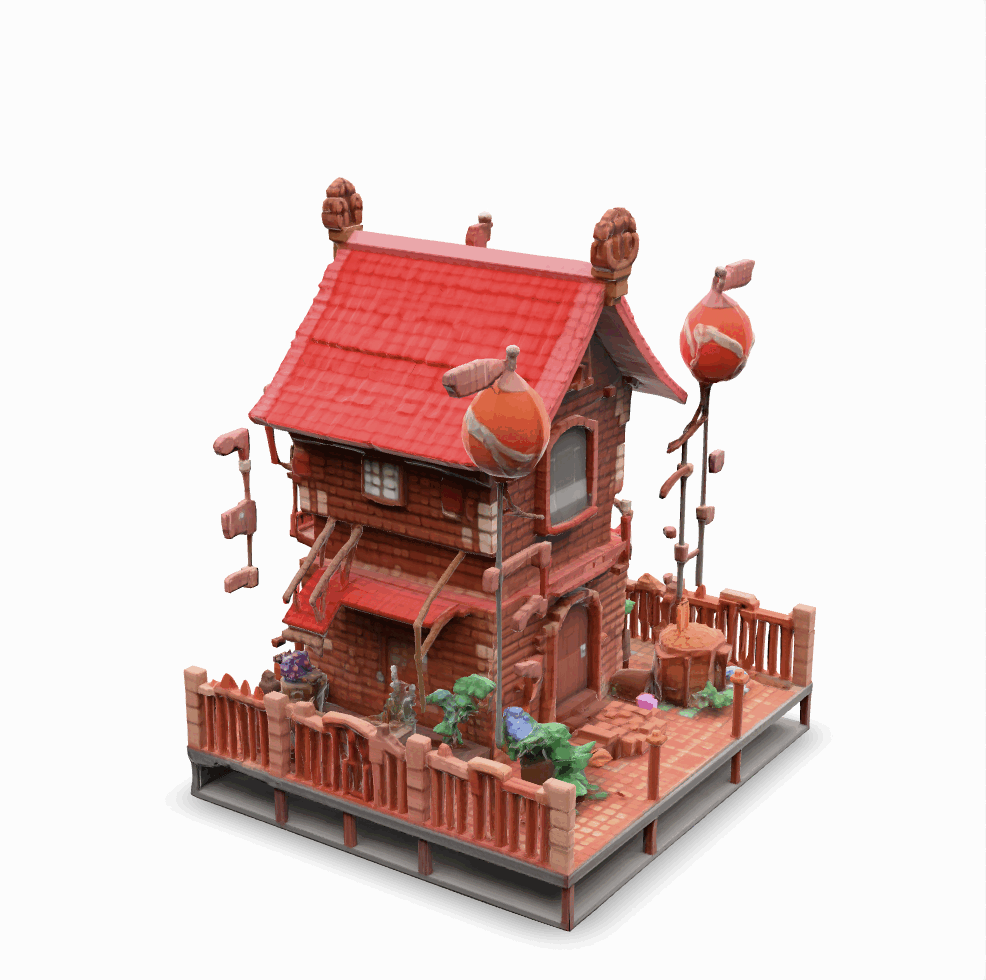

Triangle mesh. Use a mesh when the object is mostly visual or organic, such as miniatures, figurines, vehicles, terrain, and textured models.

Point cloud. Use a point cloud when capturing existing spaces or scanned objects. It is useful as reference data, but less convenient for a clean printable part.

When to use CAD

CAD is the right choice when you can describe the object with measurements: a box with named compartments, a bolt with a specific diameter, a wall mount with screw holes, or an adapter that must fit another part. It is also useful when you expect to revise the model after a first print, because parametric dimensions are easier to adjust than hand-edited mesh geometry.

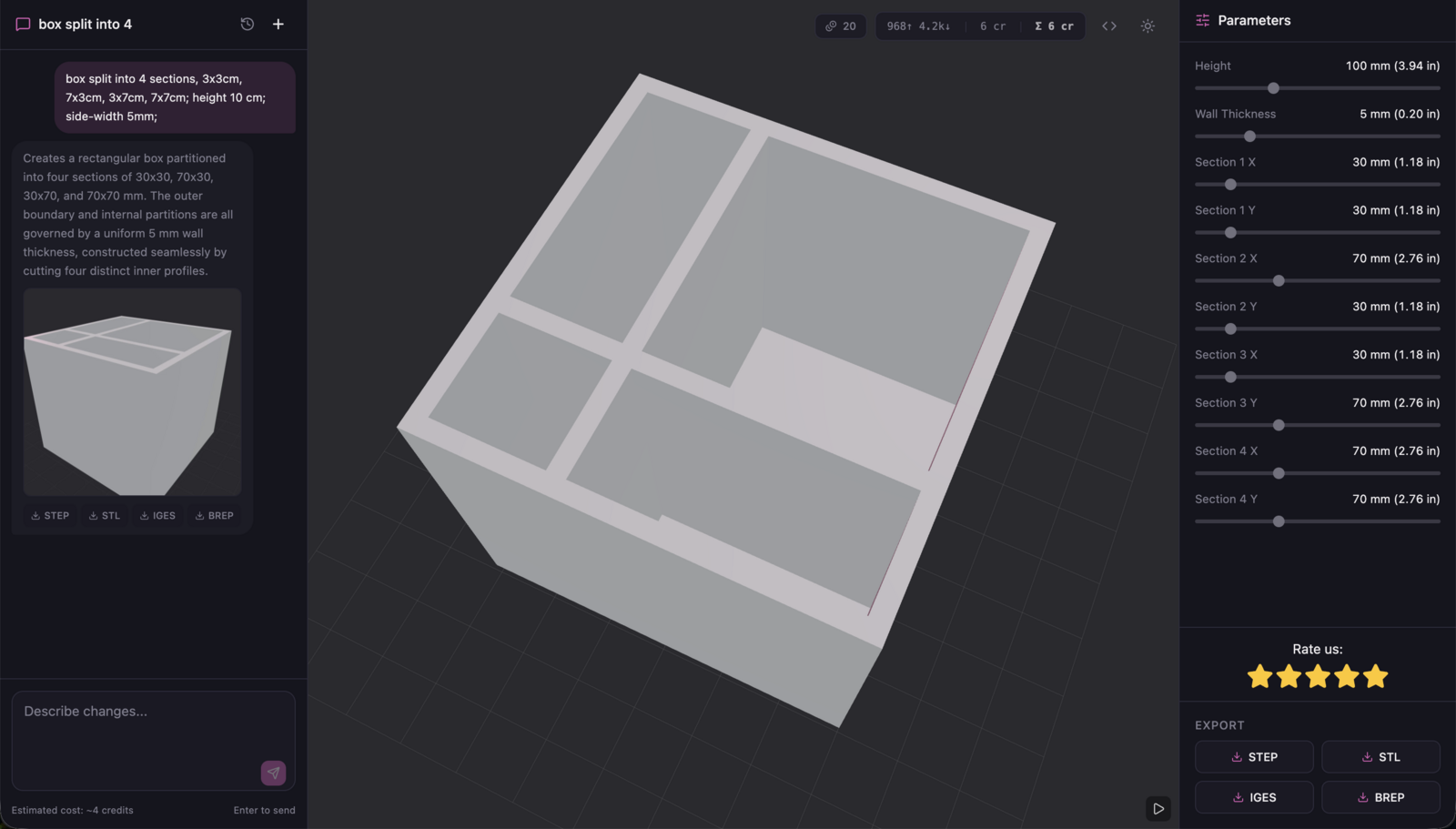

Example: box generation

Organizer boxes are a good first text-to-cad project because the prompt can define the footprint, compartments, height, and wall thickness directly.

Example prompt
box split into 4 sections, 3x3cm, 7x3cm, 3x7cm, 7x7cm; height 10 cm; side-width 5mm;

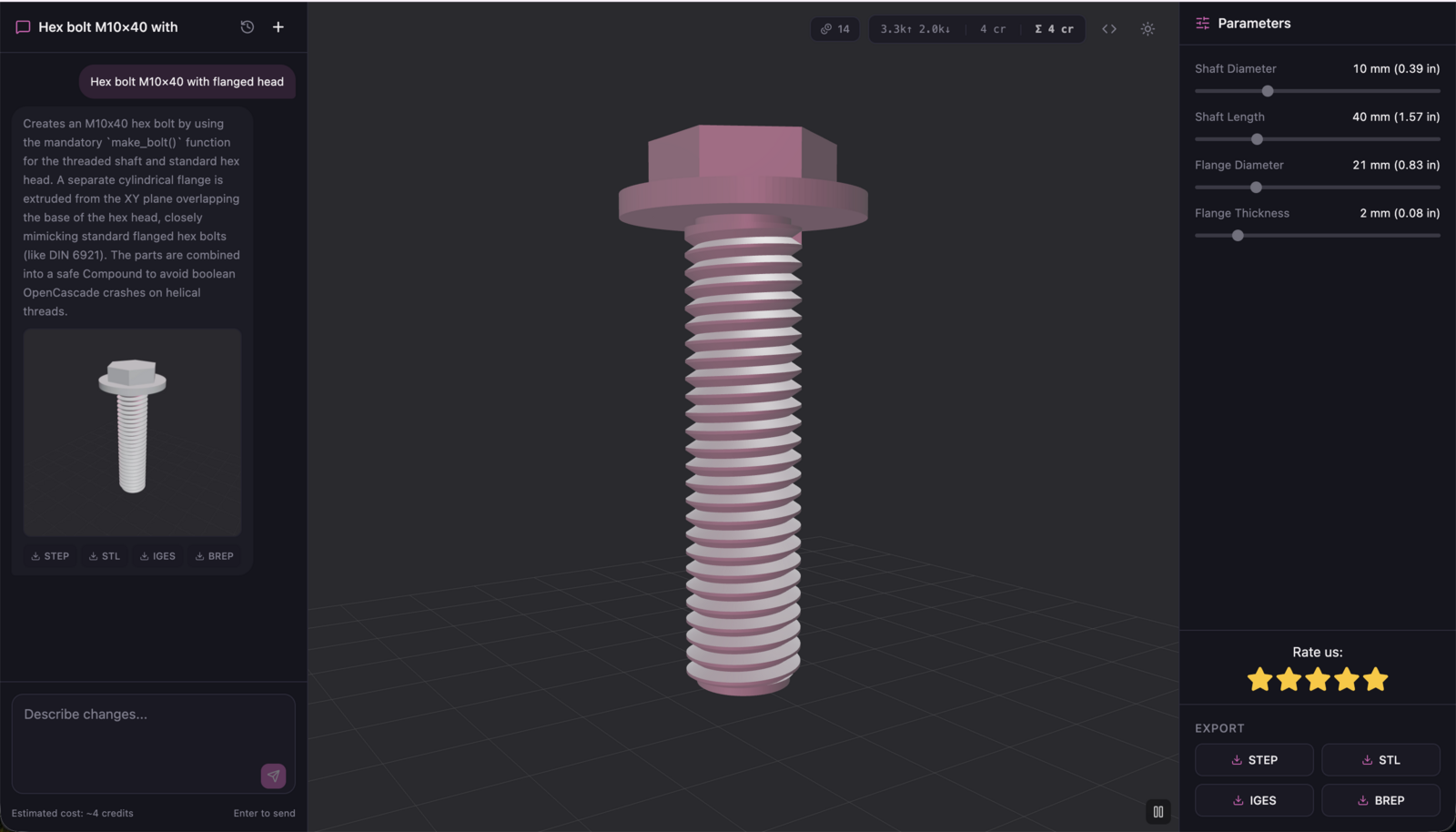

Example: bolt generation

Bolts, spacers, washers, and knobs are another good fit because they are made from simple mechanical features. Include the diameter, length, head shape, and any clearance or thread requirements.

Example prompt
M8 bolt, 35mm long, hex head 13mm across flats, 5mm head height, printable thread, small bevels on all edges

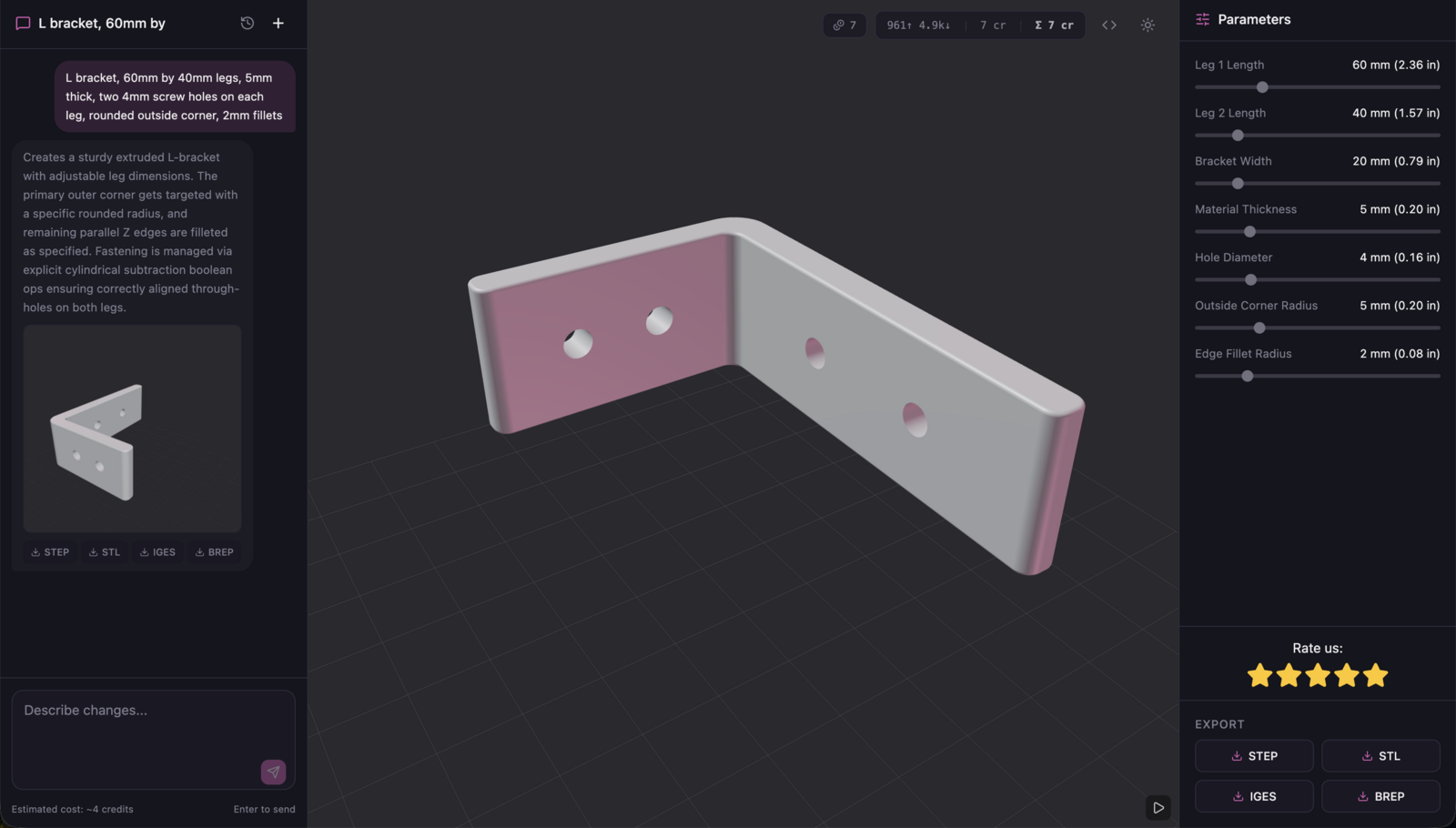

Example: mounting bracket

Brackets are useful when you need a fast custom print. Describe the plate size, bend or support shape, hole positions, and wall thickness. If the part carries load, print a prototype first and validate it before use.

Example prompt
L bracket, 60mm by 40mm legs, 5mm thick, two 4mm screw holes on each leg, rounded outside corner, 2mm fillets

Best practices for printable CAD prompts

  • Start small. Get comfortable with simple, controllable parts before asking for complex assemblies. A spacer, bracket, box, clip, or adapter is a better first prompt than a full machine or decorative model.
  • Split big ideas into smaller prompts. Generate one part at a time, review it, then add details or create the next component.
  • Describe the shape before the details. Start with the main body, then add holes, compartments, bevels, fillets, threads, or cutouts.
  • Use exact dimensions. Include length, width, height, diameter, wall thickness, hole size, spacing, and any required clearance.
  • Iterate after previewing. Treat the first result as a draft, then adjust the prompt or dimensions before exporting for printing.

How to create CAD

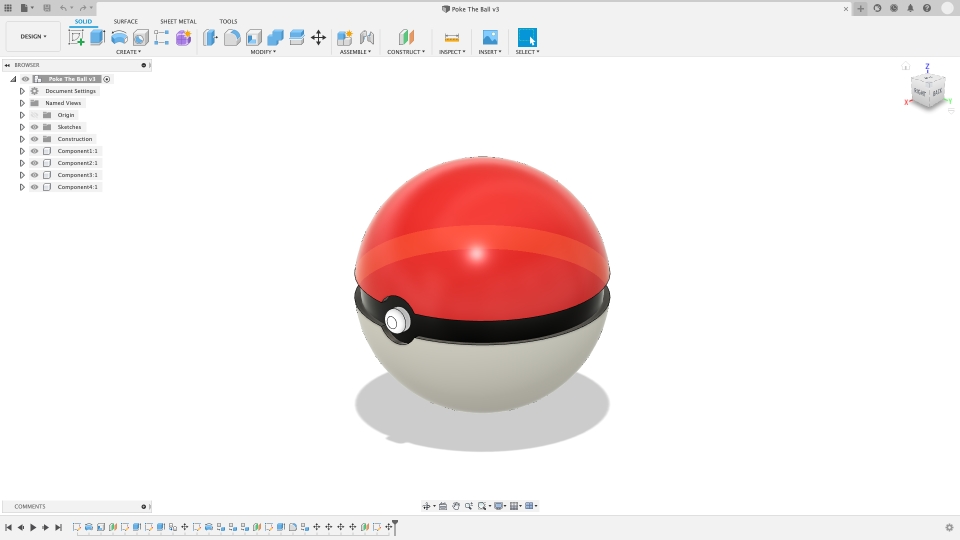

Traditional CAD software gives the most direct control and the highest precision, but it takes time to master. It is the best route for assemblies, production drawings, and parts with strict engineering requirements.

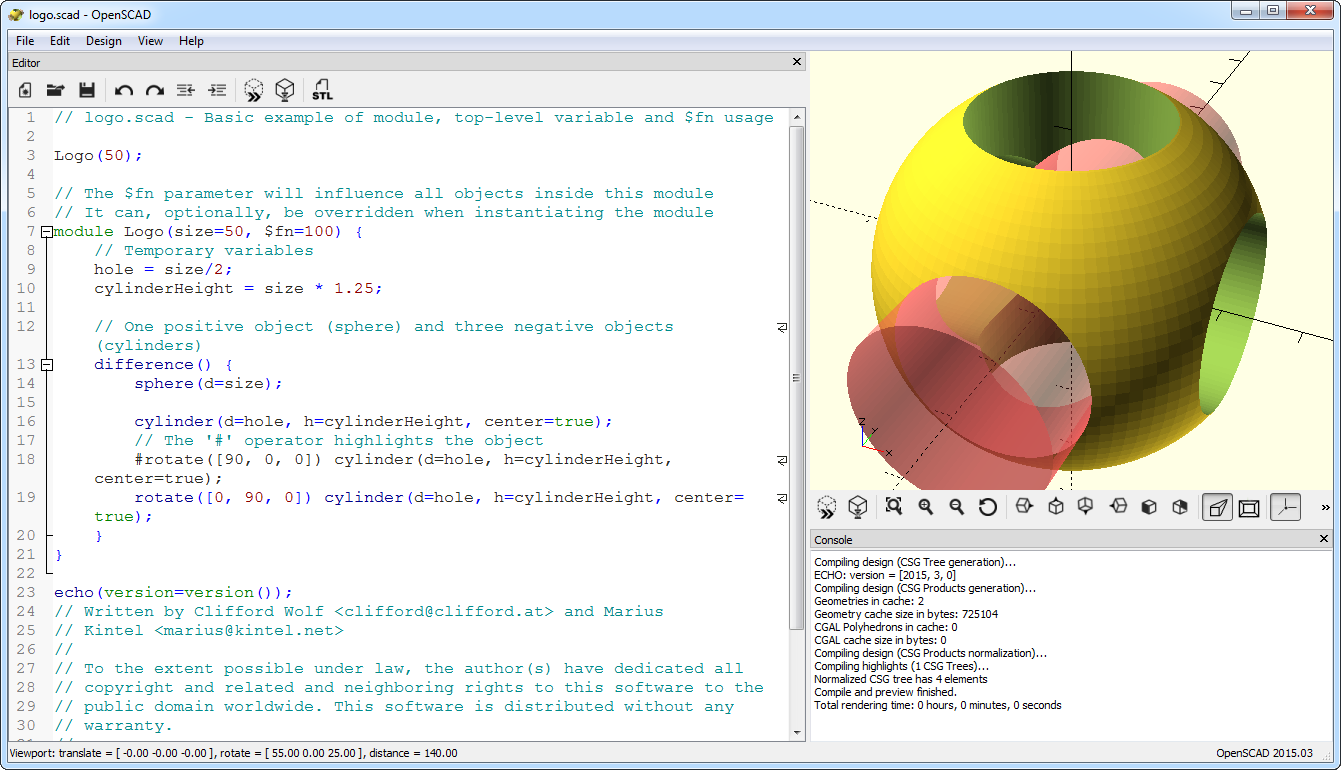

Code-based CAD is powerful when you want automation or many generated variants. CadQuery uses Python, while OpenSCAD uses a compact script language focused on constructive solid geometry. Both offer a lot of freedom, but they require code knowledge and a more complex setup than browser-based text-to-cad.

A minimal CadQuery example can create a printable box-like solid in just a few lines:

import cadquery as cq

part = (
    cq.Workplane("XY")
    .box(60, 40, 20)
    .edges("|Z")
    .fillet(2)
)

cq.exporters.export(part, "part.step")

A text-to-cad extension is a lighter option for smaller parts. You can describe the model in natural language, generate a parametric CAD file in the browser, review the result, then export formats such as STL for printing or STEP, IGES, and BREP for further CAD work.

Which export format should you use?

For 3D printing, STL is the standard format to send into a slicer. Use STL when the part looks ready to print and you want to prepare it in software such as PrusaSlicer, Bambu Studio, Cura, or OrcaSlicer.

  • STL: Use this for 3D printing. STL stores the model as a triangle mesh, which slicers expect, but it is not ideal for later CAD edits.
  • STEP: Use this when you want to continue working in CAD software such as Fusion, SolidWorks, FreeCAD, Onshape, or similar tools. STEP is usually the best handoff format for editable mechanical CAD.
  • IGES: Use this when you need compatibility with older CAD tools or surface-focused workflows. For most modern mechanical parts, STEP is usually preferred before trying IGES.
  • BREP: Use this for advanced CAD/kernel workflows where preserving boundary-representation geometry matters, for example when moving geometry between CAD libraries or doing additional scripted processing.

How to use a text-to-cad extension

Start with small, dimensioned objects. A prompt like “make the Eiffel tower” or “make a warrior miniature” is usually a poor CAD prompt because the result depends on visual detail. A smaller mechanical prompt is much easier to convert into reliable parametric CAD.

Example prompt
make an M8 bolt, 35mm long, with a 13mm hex head

Give exact measurements, name the important features, and mention manufacturing constraints such as wall thickness, bevels, fillets, hole clearance, and print orientation. A dimensioned bracket prompt gives the generator a controllable part definition.

Example prompt
60mm by 40mm L-bracket, 5mm thick, two 4mm screw holes on each leg, 2mm fillets

Treat the first generation as a draft. Inspect the model, adjust the prompt or dimensions, and export STL only when the geometry looks printable. If the part needs to fit another object, print a small test section before committing to the full model.
